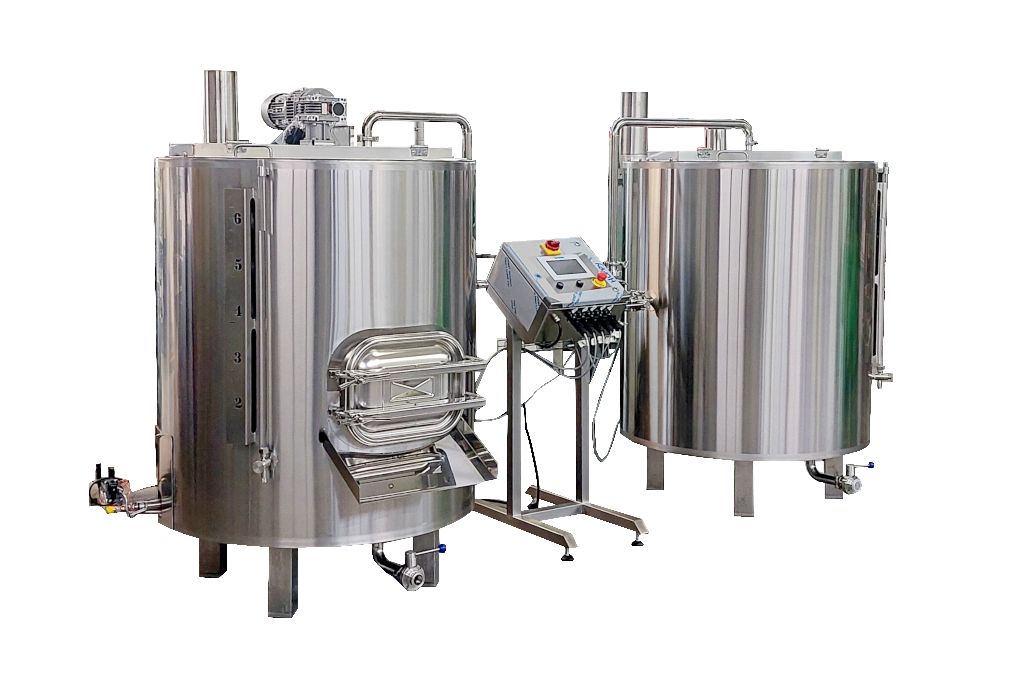

Beer Brewing System mod. Freestanding DC-TC 5Hl Double Cooking -

PLANT DESCRIPTION

No.2 Freestanding vats;
Heating type: lpg/methane flame;
System voltage: 220V – Single phase;

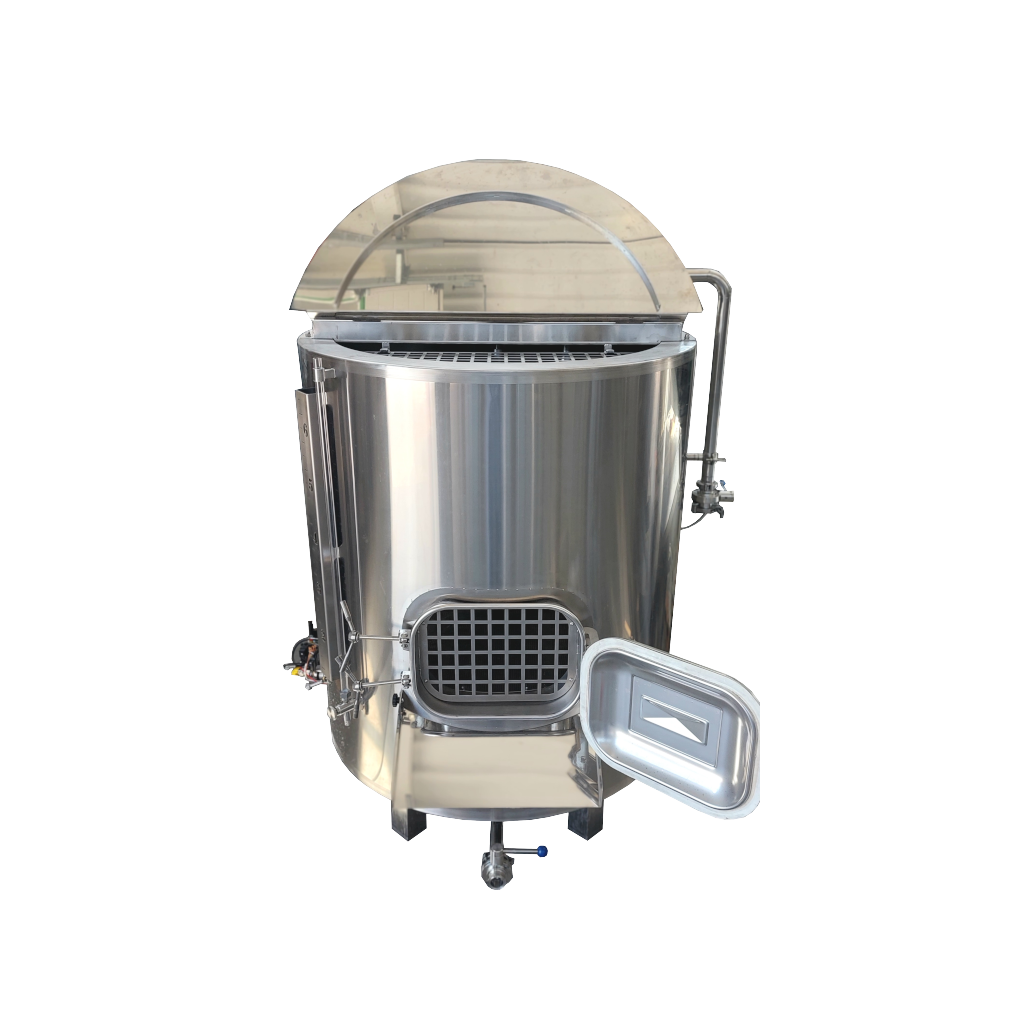

Vat 1: mashing and filtration – Insulated – full cavity combustion fume extraction;

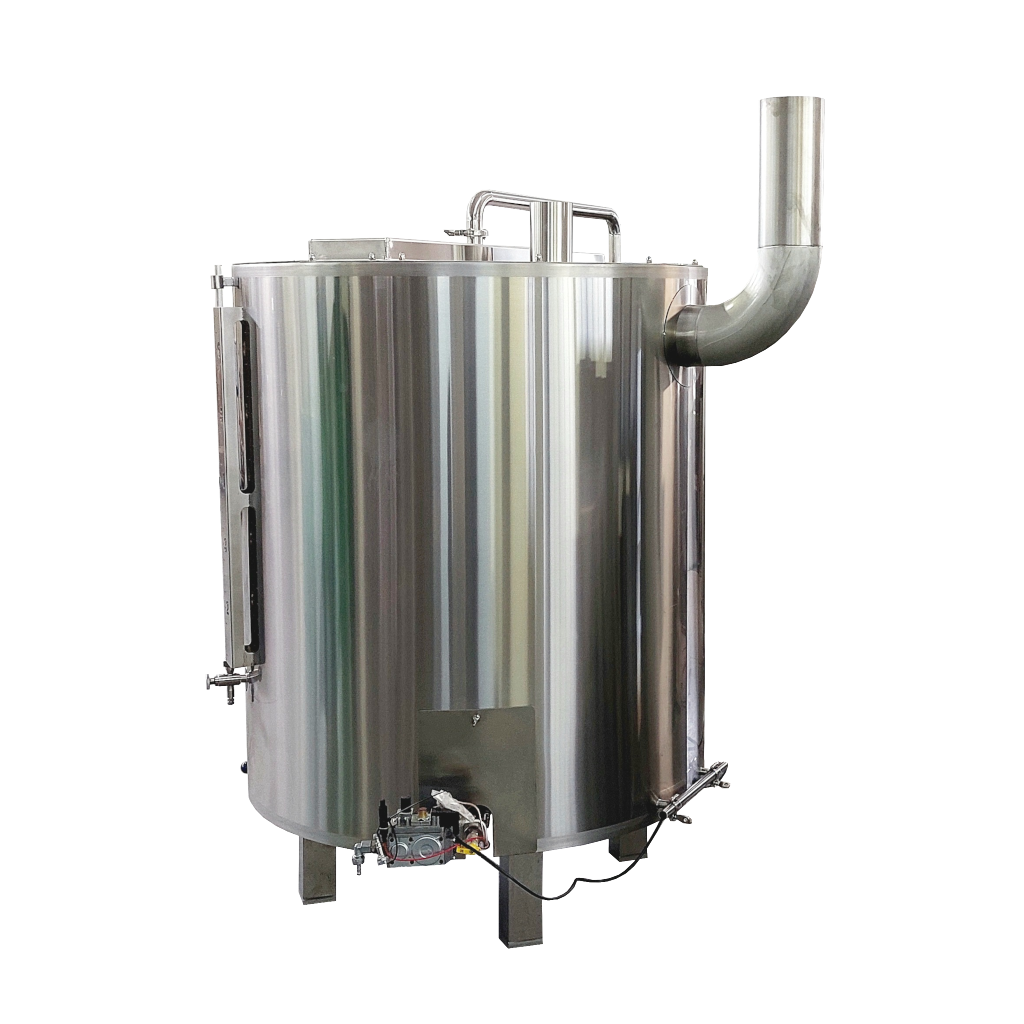

Vat 2: boiling and whirlpool – Insulated – total cavity combustion fume extraction;
Vat 3: sparging – Optional 5-10 hl.

Insulation with high-density rock wool of the cylinder section of the three vats and lining with aisi 304 sheet metal;
Total cavity for extraction of combustion fumes;
No.1 High capacity burner 35 – 45 kw;
No.1 Control panel with thermostats , for automatic management of mash tun heating and boiling;
Stainless steel plate heat exchanger with EPDM seals;
No.1 Self-priming pump with EPDM rubber impeller;
Motorized agitator for Mashing vat;
Safety protection top opening Mashing vat;
High temperature food grade rubber hoses;
Visual mirror for checking wort limpidity;
DIN wrench for attaching and releasing hoses.
